PRODUCT DATA / DESCRIPTION

P/N 62453
Max pulling force 4309 kg
Supply voltage: 12 V DC, 5,2 PS (3,8 kW)
Gearing: 2-stage planetary
Gear ratio: 148:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: synthetic 9,5 mm × 26 m, with hook
Remote: sealed Hand-Held
Installed weight: 30 kg
Shipping weight: 35 kg
Certificate: CE
Superwinch article no.: 1695201
ROPE SPEED | POWER CONSUMPTION IN A

Line Pull 0 kg 18,9 m/min, 75 ampere
Line Pull 4309 kg 1,5 m/min, 430 ampere

INCLUDES
Winch
Synthetic rope with hook
Remote control pendant
Hawse fairlead

RECOMMENDED ACCESSORIES
Wireless remote control, P/N 63459 or 72199
Mounting plate, P/N 62601
Neoprene winch cover, P/N 68720

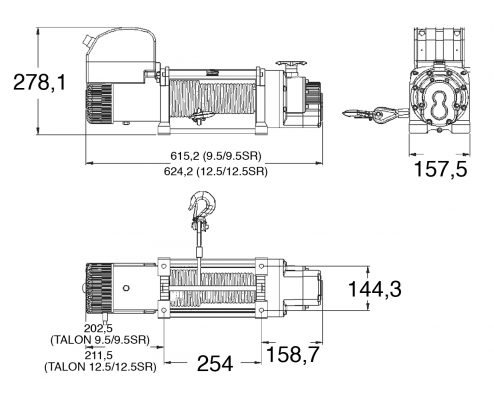

DIMENSIONS
