PRODUCT DATA / DESCRIPTION

P/N 64062
Max pulling force 3401 kg
Supply voltage: 12 V DC, 2,1 PS (1,57 kW)
Gearing: 1-stage planetary
Gear ratio: 159:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: synthetic 6,4 mm × 12,2 m, with hook
Remote: sealed Hand-Held
Installed weight: 10,40 kg
Shipping weight: 14,51 kg
Certificate: CE
Superwinch article no.: 1475201

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg   6,5 m/min, 40 ampere
Line Pull 3401 kg   3,2 m/min, 350 ampere

INCLUDES
Winch
Synthetic rope with hook
Remote control pendant
Roller fairlead (2 rollers, stainless steel )

RECOMMENDED ACCESSORIES
Wireless remote control, P/N 64084
Cover for winch, P/N 64092
Mounting plate, P/N 64087

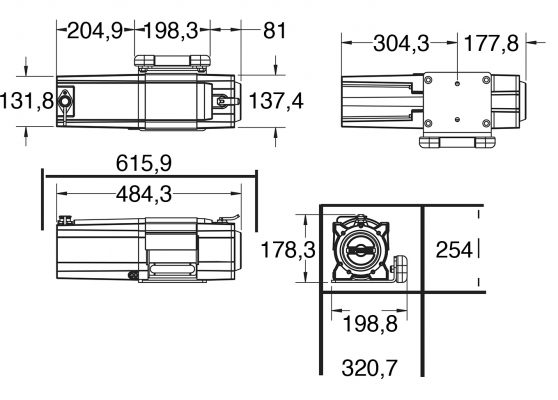

DIMENSIONS
