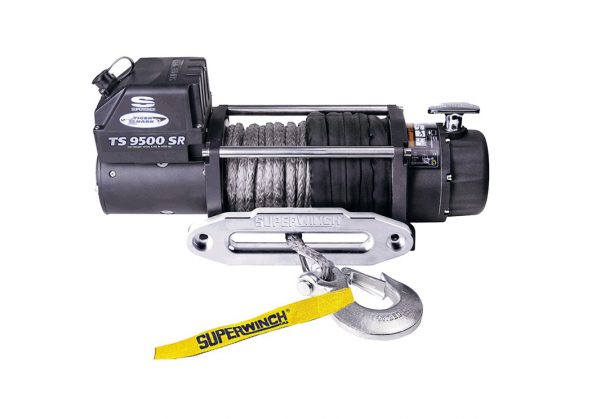

SUPERWINCH TIGER SHARK 9500 SR (12 V)

P/N 62487
Max pulling force 4309 kg
Supply voltage: 12 V DC, 5,2 PS (3,8 kW)
Gearing: 3-stage planetary
Gear ratio: 218:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: synthetic 8,3 mm × 29 m, with hook
Remote: sealed Hand-Held
Installed weight: 31 kg
Shipping weight: 32 kg
Certificate: CE
Superwinch article no.: 1595201

ROPE SPEED | POWER CONSUMPTION IN A

Line Pull 0 kg 5,7 m/min, 80 ampere
Line Pull 4309 kg 1,2 m/min, 340 ampere

INCLUDES
Winch
Synthetic rope with hook
Remote control pendant
Hawse fairlead

RECOMMENDED ACCESSORIES

Wireless remote control, P/N 63459 or 72199
Neoprene winch cover, P/N 68720
Mounting plate, P/N 62601

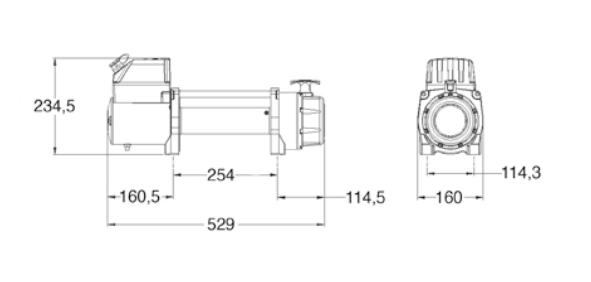

DIMENSIONS
