SUPERWINCH TERRA 25 SR (12 V)

PRODUCT DATA / DESCRIPTION

P/N 62506

Max pulling force 1134 kg
Supply voltage: 12 V DC, 1,3 PS (1,0 kW)
Gearing: 3-stage planetary
Gear ratio: 140:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: synthetic 4,8 mm × 15,2 m, with hook
Remote: sealed Hand-Held
Installed weight: 6,8 kg
Shipping weight: 10,7 kg
Certificate: CE
Superwinch article no.: 1125230

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 7,6 m/min, 25 ampere
Line Pull 1134 kg 2,9 m/min, 162 ampere

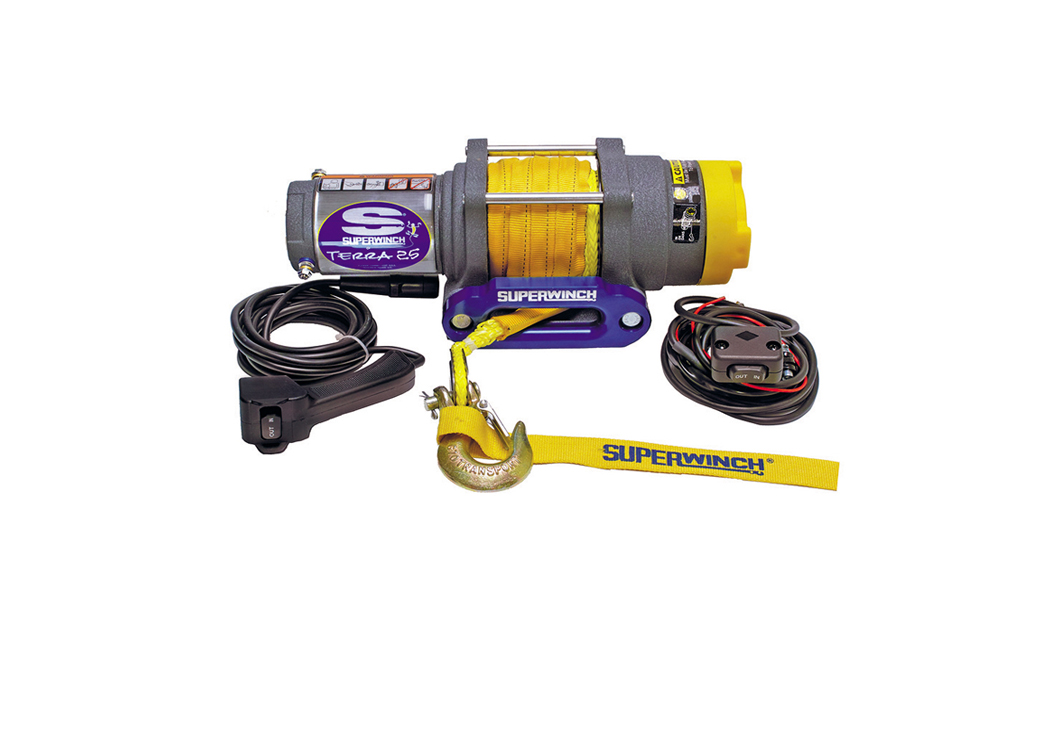

INCLUDES
Winch
Synthetic rope with hook
Remote control pendant
Hawse fairlead
Control switch for ATV handlebars

RECOMMENDED ACCESSORIES
Wireless remote control, P/N 63459 or 72199
various fastenings for different quad / ATV manufacturers,
available on request

DIMENSIONS
