SUPERWINCH TALON 12.5 (24 V)

P/N 62540
Max pulling force 5670 kg
Supply voltage: 24 V DC, 6 PS (4,44 kW)
Gearing: 2-stage planetary
Gear ratio: 148:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 9,5 mm × 26 m, with hook
Remote: sealed Hand-Held
Installed weight: 43 kg
Shipping weight: 48 kg
Certificate: CE
Superwinch article no.: 1612300

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 18,9 m/min, 75 ampere
Line Pull 5670 kg 0,99 m/min, 530 ampere

INCLUDES
Winch
Steel rope with hook
Remote control pendant
Roller fairlead (4 rolles)

RECOMMENDED ACCESSORIES
Wireless remote control, P/N 63459 or 72199
Mounting plate, P/N 62601
Neoprene winch cover, P/N 68720

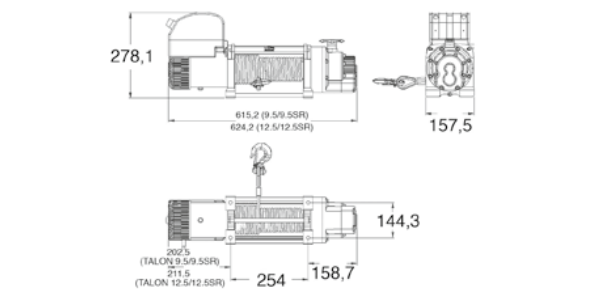

DIMENSIONS
